Ellis Hahn
L.e.H. Guitars, Portland, OR, USA
Ellis Hahn from Portland, Oregon, is the new star among American bass builders. This sentence is only partially true, however, because Ellis has been working in Roger Sadowsky’s workshop since 2006 and over the years he become his right-hand man and one of the most internationally talented bass builders. For most guitar builders, though, having their „own baby“ is something that should not be underestimated. So over the years at Ellis, the idea of the Offset Bass, Ellis‘ first bass model, has grown and in 2018 the first model has finally been completed. Having worked at the top level for many years, Ellis knows exactly what matters in a premium instrument and how perfect an instrument needs to be to meet the highest standards.
The next Generation
The Offset is Ellis‘ first bass with which he introduces himself to the bass world. After playing the bass for the first time, you immediately notice how much experience was „built into“ the bass. No matter what it is, the electronics, the neck construction, everything makes sense. You feel that this bass isn’t a quick shot, on the contrary, Ellis has planned a long time and the result is fantastic. The result is a bass that can be played very smoothly, it has a powerful tone with long sustain, almost as if it had been played for years. The whole thing is produced by the instrument, which was built in chambering construction, without any dead spot.Respectable is also Ellis‘ mix of traditional and new elements, which is a step in a new dimension.
The Offset is a bass that leaves the classic boutique paths and clearly stands out due to its powerful but harmonic construction.
This explains Ellis‘ slogan:
„Not for the faint of heart!“

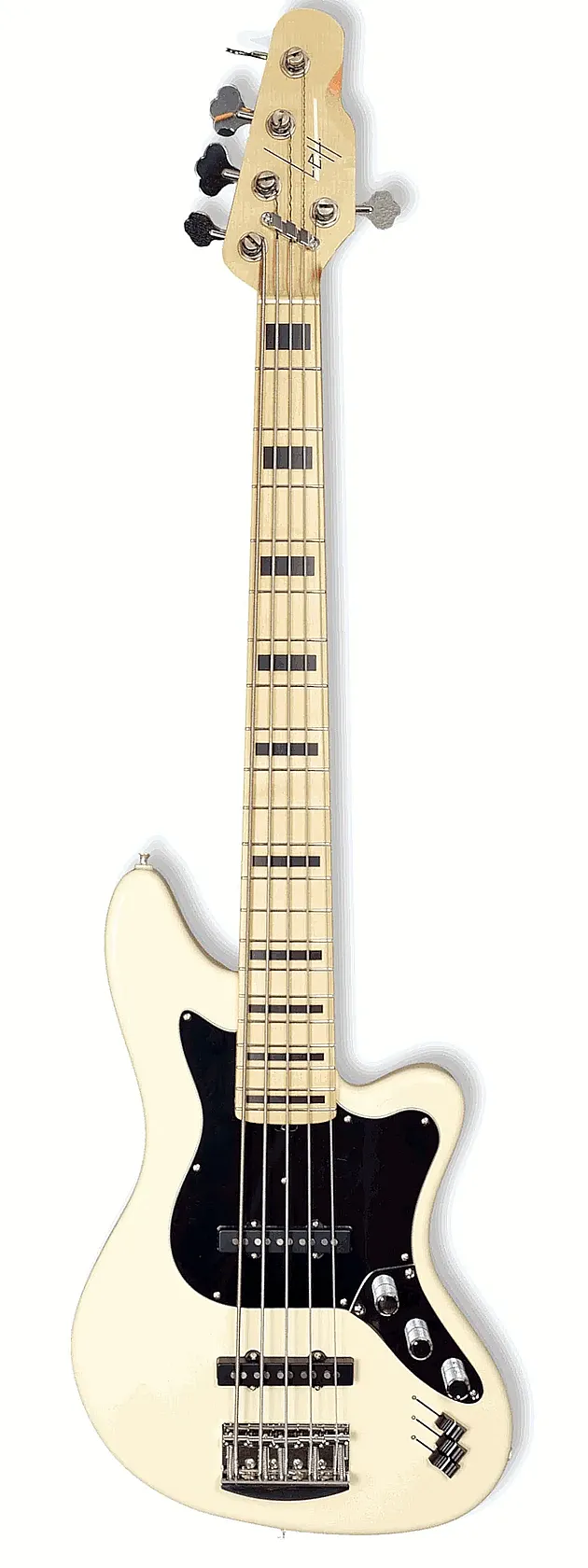

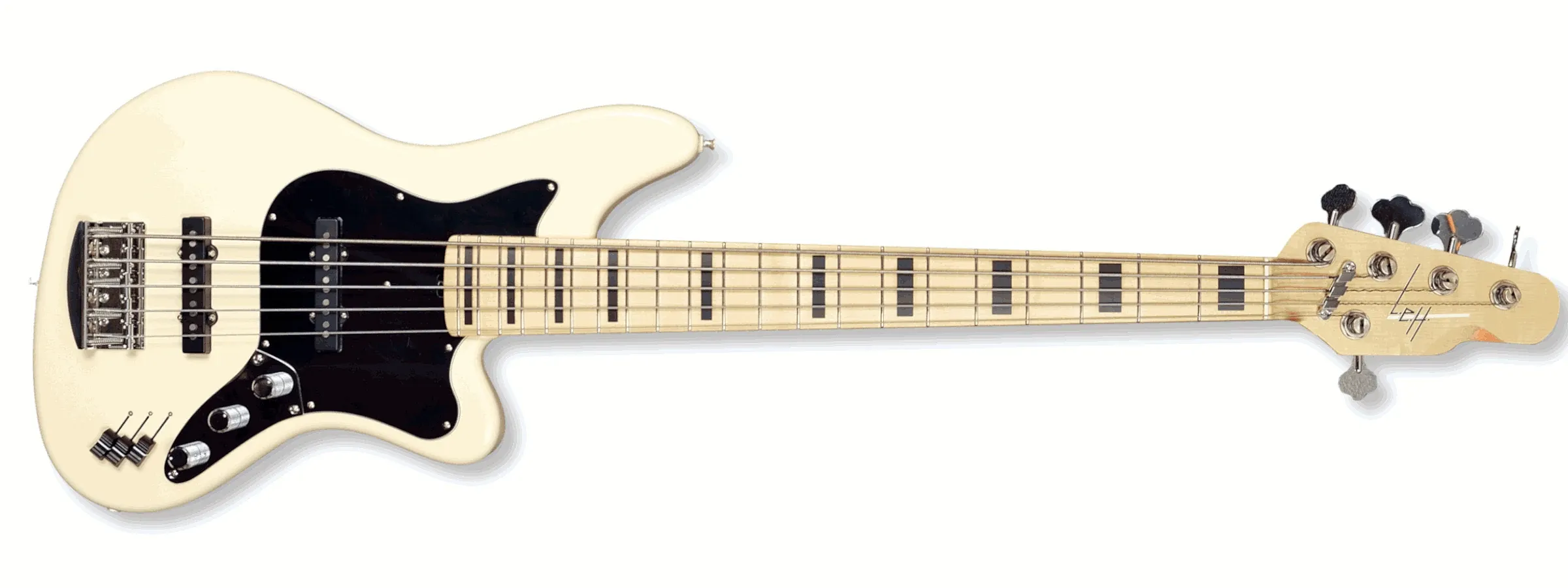

LEH Tim Lefebvre Signature Offset 5
Body: Okume, chambered
Finish: High Gloss Poly, Olympic White
Neck: Quarter Sawn 2-Piece Neck
Fretboard: Maple
Inlays: Black Block Inlays and Luminlay Side Dots
Neck Finish: Matte Nirto Lacquer and Hybrid Oil
Frets / Material: 21 Frets
Scale Length: 34“ / 864 mm
Nut Width: 1.875“ / 47,6 mm
String Spacing: 19 mm
Neck Radius: 12“ / 305 mm
Pickups: Lollar Single Coils in 70s Location
Electronic: Nordstrand 3 band EQ custom wired boost only w/ LEH faders
Pickguard: BWB w/ chrome control plate and chrome P knobs
Tuner: Hipshot Ultralite
Bridge: Hipshot Vintage Quick release, chrome
€ 7.500,00 (EU)
€ 6.302,52 (NON EU)

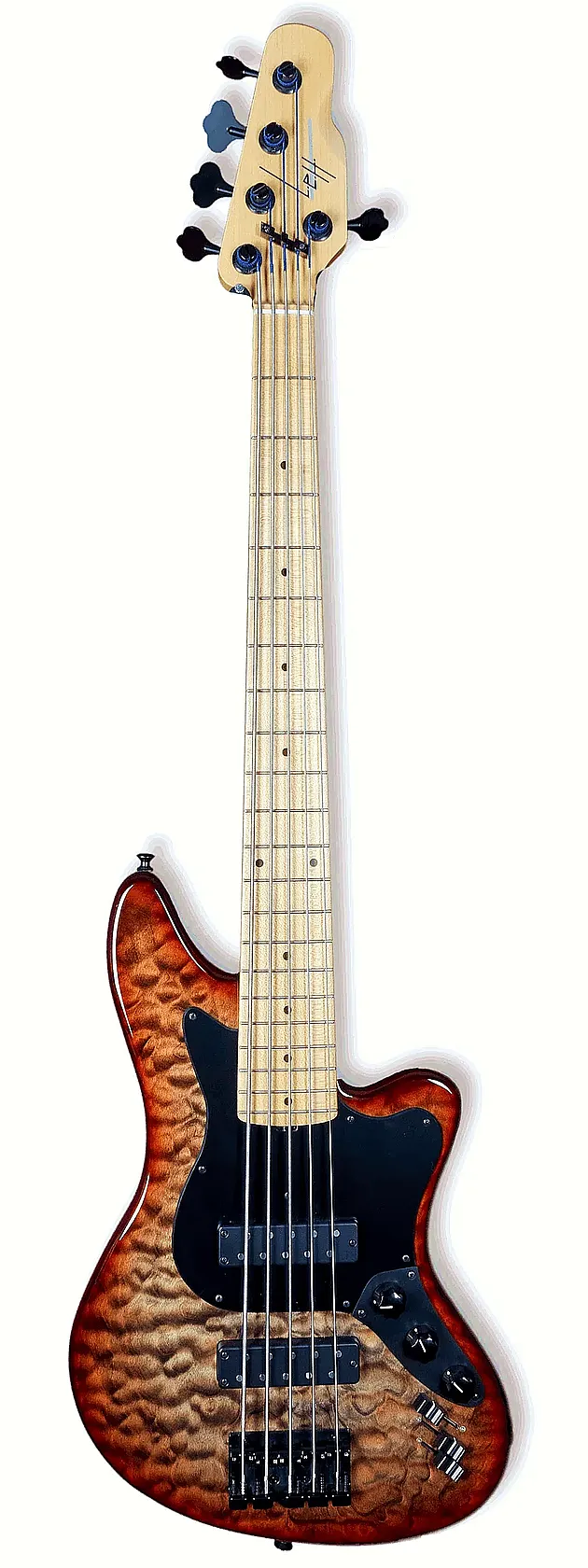

LEH Offset 5 Quilted Maple Top
Body: Ash body, chambered
Top Wood: Quilted Maple
Finish: Dark Burst Maple Leaf
Neck: Quarter Sawn 2-Piece Neck
Fretboard: Maple
Inlays: Dots
Frets / Material: 21 frets
Scale Length: 34“ / 864 mm
Nut Width: 1.75“ / 44 mm
String Spacing: 18 mm
Neck Radius: 12“ / 305 mm
Pickups: Soapbar Nordstrand
Electronic: Nordstrand 3 band preamp custom “boost only” with graphic fader EQ
Tuner: Hipshot Ultralite
Bridge: Gotoh
Do you like what you see?
Get in touch with us!

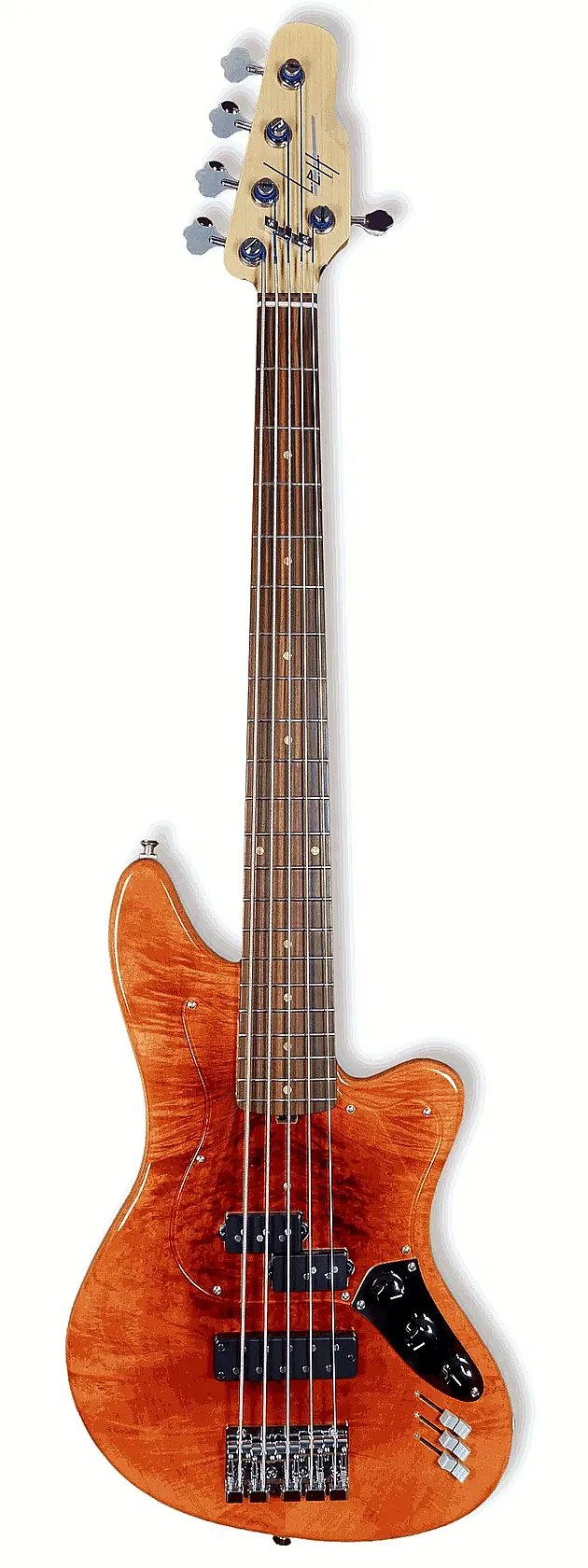

LEH Offset 5 Reverse Fire Burst
Body: Alder body, chambered
Top Wood: Maple Burl
Finish: Reverse Red Burst „Fire Burst“
Neck: Quarter Sawn 2-Piece Neck
Fretboard: Morado
Inlays: Dots
Frets / Material: 21 frets
Scale Length: 34“ / 864 mm
Nut Width: 1.75“ / 44 mm
String Spacing: 18 mm
Neck Radius: 12“ / 305 mm
Pickups: Split Coil/Soapbar by Nordstrand
Electronic: Nordstrand 3 band preamp custom “boost only” with graphic fader EQ
Tuner: Hipshot Ultralite
Bridge: Gotoh
Do you like what you see?
Get in touch with us!
LEH Tim Lefebvre Signature Offset 5
Body: Okume, chambered
Finish: High Gloss Poly, Olympic White
Neck: Quarter Sawn 2-Piece Neck
Fretboard: Maple
Inlays: Black Block Inlays and Luminlay Side Dots
Neck Finish: Matte Nirto Lacquer and Hybrid Oil
Frets / Material: 21 Frets
Scale Length: 34“ / 864 mm
Nut Width: 1.875“ / 47,6 mm
String Spacing: 19 mm
Neck Radius: 12“ / 305 mm
Pickups: Lollar Single Coils in 70s Location
Electronic: Nordstrand 3 band EQ custom wired boost only w/ LEH faders
Pickguard: BWB w/ chrome control plate and chrome P knobs
Tuner: Hipshot Ultralite
Bridge: Hipshot Vintage Quick release, chrome
€ 7.500,00 (EU)
€ 6.302,52 (NON EU)
LEH Offset 5 Quilted Maple Top
Body: Ash body, chambered
Top Wood: Quilted Maple
Finish: Dark Burst Maple Leaf
Neck: Quarter Sawn 2-Piece Neck
Fretboard: Maple
Inlays: Dots
Frets / Material: 21 frets
Scale Length: 34“ / 864 mm
Nut Width: 1.75“ / 44 mm
String Spacing: 18 mm
Neck Radius: 12“ / 305 mm
Pickups: Soapbar Nordstrand
Electronic: Nordstrand 3 band preamp custom “boost only” with graphic fader EQ
Tuner: Hipshot Ultralite
Bridge: Gotoh
Do you like what you see?
Get in touch with us!
LEH Offset 5 Reverse Fire Burst
Body: Alder body, chambered
Top Wood: Maple Burl
Finish: Reverse Red Burst „Fire Burst“
Neck: Quarter Sawn 2-Piece Neck
Fretboard: Morado
Inlays: Dots
Frets / Material: 21 frets
Scale Length: 34“ / 864 mm
Nut Width: 1.75“ / 44 mm
String Spacing: 18 mm
Neck Radius: 12“ / 305 mm
Pickups: Split Coil/Soapbar by Nordstrand
Electronic: Nordstrand 3 band preamp custom “boost only” with graphic fader EQ
Tuner: Hipshot Ultralite
Bridge: Gotoh
Do you like what you see?
Get in touch with us!
